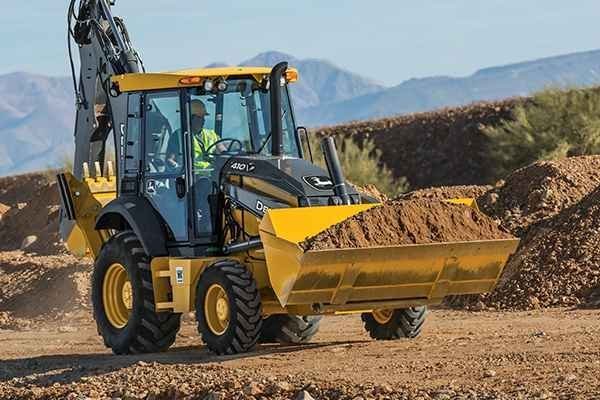

JD 410, 420 Loaders Operators Manual
Maximize the productivity and safety of your utility equipment with this expert guide to the JD 410 and 420 Loaders. This comprehensive Operator’s Manual is the primary resource for owners and fleet managers who require precise mounting procedures, lubrication schedules, and field-testing benchmarks to ensure peak machine performance.
JD 410 & 420 Loader | Operator’s Field & Maintenance Guide
| Section | Content Category | Critical Operator & Service Data (Hot Info) |
|---|---|---|
| Safety | Risk Mitigation | Identification of overhead clearance limits, rollover protection (ROPS) standards, and bystander safety zones. |
| Preparing Tractor | Machine Integration | Front-end weight requirements, rear ballast specifications, and tire inflation for maximum stability. |
| Controls | Operator Interface | Joystick sensitivity, multi-lever function mapping, and hydraulic response calibration. |
| Attach/Detach | Mounting Logic | Critical Sequence: Step-by-step parking stand deployment, hydraulic coupler cleaning, and locking pin engagement. |
| Operating | Field Performance | Proper bucket leveling, excavation techniques, and lift-cycle optimization to prevent frame stress. |
| Attachments | Tool Versatility | Installation and load-limit data for pallet forks, bale spears, and specialized buckets. |
| Lubrication / PM | Preventive Maintenance | High-pressure grease point intervals, hydraulic oil viscosity specs, and filter replacement schedules. |
| Troubleshooting | Fault Diagnosis | Root cause analysis for slow lift speeds, cylinder drift, and hydraulic ‘chatter’ during operation. |
| Service & Storage | Long-term Care | Cylinder rod protection, corrosion prevention for pivot pins, and off-season storage checklists. |
| Specifications | Machine Data | Performance Benchmarks: Breakout force (lbs), lift capacity to full height, and cycle time (sec). |
Optimize Your Workflow: JD 410 & 420 Performance Solutions
The JD 410 and 420 Loader Operator’s Manual is engineered to help you achieve Peak Performance through standardized handling and maintenance protocols. By mastering the Attaching and Detaching procedures, operators can significantly reduce transition time between tasks while ensuring the mechanical integrity of the tractor-loader interface.
Key Technical Advantages for Owners:
- Safety & Stability: Detailed Preparing the Tractor instructions ensure the machine is correctly ballasted to prevent tip-over accidents during heavy lifts.
- Extended Component Life: Following the Lubrication and Maintenance intervals prevents premature wear on high-friction pivot pins and bushings.
- Professional Results: The Troubleshooting and Service sections empower operators to perform rapid field adjustments, maintaining high-cycle efficiency throughout the workday.
