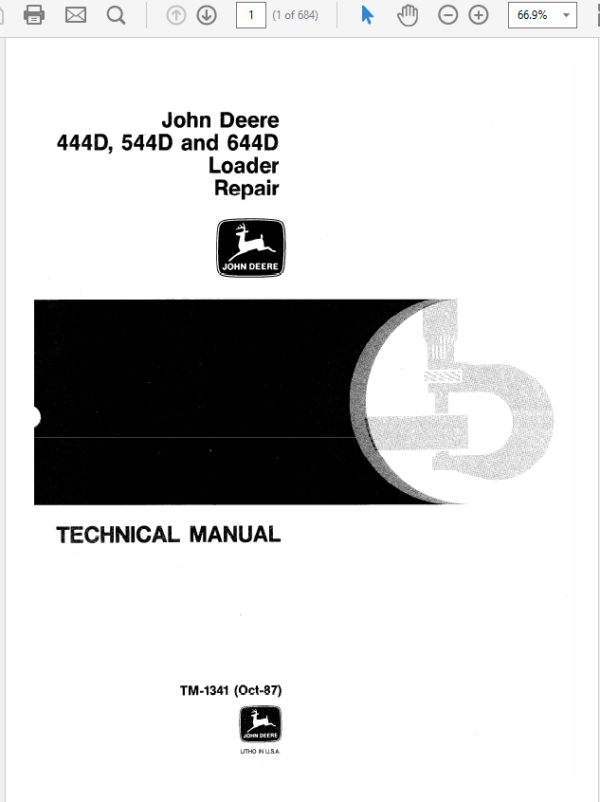

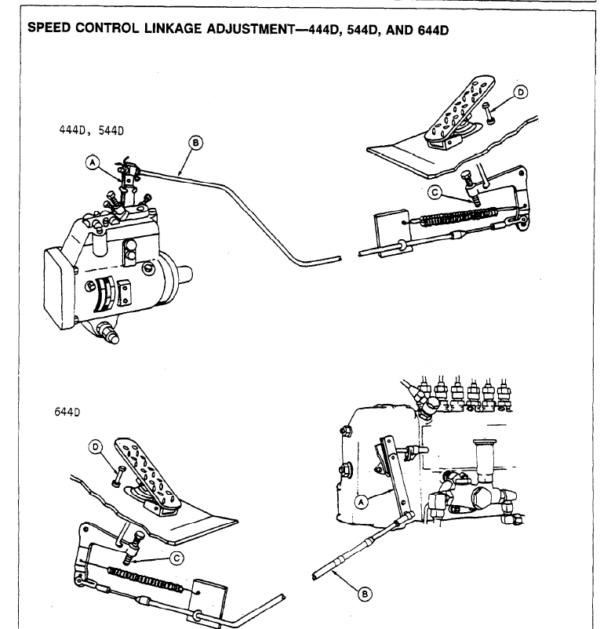

JD 444D, 544D and 644D Loader Technical Manual TM1341
Maximize the performance and diagnostic accuracy of your JD 444D, 544D, and 644D Loaders with this comprehensive Technical Service Manual (TM1341). Spanning over 1,200 pages of integrated Operation, Test, and Repair data, this guide is the primary resource for heavy equipment technicians requiring OEM-level precision for the D-series loader line.
JD 444D, 544D, 644D | Master Service & Repair Guide (TM1341)
| Section / Group | System Focus | Mechanic’s ‘Hot Data’ (Diagnostics & Repair) |
|---|---|---|
| I: General | Information | Master Benchmarks: Critical torque charts, fluid capacities, and model-specific lubricant viscosities. |
| 9005/9010 | Engine Op & Test | Power Analysis: Dynamic compression tests, fuel injection timing, and turbocharger boost benchmarks (PSI). |
| 9015/16 | Electrical Systems | Circuit Logic: Full-scale wiring schematics, charging system voltage tests, and starter draw analysis. |
| 9020/03 | Power Train | Drive Integrity: Transmission engagement pressures, torque converter stall speeds, and shift modulation timing. |
| 9025/31 | Hydraulics & HVAC | Climate & Flow: Main pump efficiency (GPM), relief valve settings, and A/C refrigerant charge specs. |
| 01/02 | Axles & Wheels | Driveline Precision: Planetary gear backlash, U-joint phasing, and axle bearing preload adjustments. |
| 04/05 | Engine Repair | Core Overhaul: Valve lash clearances, cylinder liner protrusion, and cooling system pressure testing. |
| 07/09 | Dampener & Steering | Control Systems: Dampener plate wear limits and steering orbitrol relief valve calibration. |
| 10/11 | Service & Park Brake | Stopping Power: Brake disc wear tolerances, hydraulic bleeding, and park brake holding capacity. |
| 17/18 | Frame & Station | Structure & Cab: Articulation joint play limits, ROPS integrity, and operator enclosure sealing. |
| 31 | Loader | Front-End Duty: Pin/bushing wear limits, loader frame alignment, and bucket cycle time benchmarks. |
| 99 | Dealer Tools | Custom Fabrications: Blueprints for building specialized seal drivers, pullers, and diagnostic test manifolds. |
Advanced Fleet Solutions: Professional D-Series Service Standards
The JD TM1341 Technical Manual is divided into two specialized volumes: Operation and Test (599 pages) and Repair (684 pages). This dual-approach allows technicians to first isolate failures through systematic Diagnostic Sections and then execute the repair using factory-specified Wear Tolerances and Torque Values.
Key Technical Advantages for Shop Professionals:
- Rapid Fault Isolation: The Operational Checkout Procedure allows for a ‘test-before-teardown’ methodology, pinpointing hydraulic leaks or electrical shorts in record time.
- Precision Overhauls: Every repair group begins with a summary of essential tools and Service Parts Kits, ensuring you have the necessary seals and gaskets before the machine is disassembled.
- In-House Tooling: The Dealer Fabricated Tools section provides engineering dimensions to create the specialized tools required for D-series components, reducing reliance on expensive external vendors.
