What is the specs of the Case Cx250c Tier 3 Excavator?
What is the specs of the Case Cx250c Tier 3 Excavator?

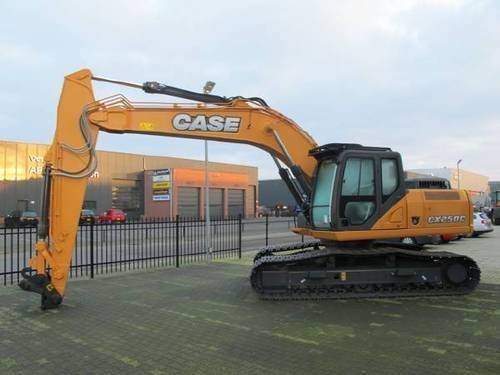

The Case CX250C Tier 3 Excavator is a powerful and versatile machine designed for heavy-duty earthmoving and construction tasks. Below are the key specifications of this excavator:
Engine Specifications
- Engine Model: Isuzu AI-4HK1X
- Engine Type: 4-cylinder, Tier 3 compliant
- Horsepower: 177 hp (132 kW) at 2,000 rpm
- Fuel Capacity: 400 liters (105.7 gallons)
Operating Performance
- Operating Weight: 56,900 lbs (25,816 kg)
- Max Digging Depth: 23.1 ft (7.05 m)
- Max Reach at Ground Level: 33.1 ft (10.08 m)
- Bucket Capacity: 0.76 – 1.90 cubic yards (0.58 – 1.45 m³)
- Arm Breakout Force: 24,200 lbf (107.7 kN)
- Bucket Breakout Force: 39,340 lbf (175.1 kN)
Hydraulic System
- Hydraulic Flow: 2 x 53.4 gallons per minute (2 x 202 liters/minute)
- Relief Pressure: 4,980 psi (34.3 MPa)
Dimensions
- Overall Length: 31.9 ft (9.72 m)
- Overall Width: 10.6 ft (3.23 m)
- Height to Top of Cab: 10.4 ft (3.17 m)
- Tail Swing Radius: 10 ft (3.05 m)
Other Features
- Swing Speed: 11.5 rpm
- Travel Speed: 3.3 – 5.5 mph (5.3 – 8.8 km/h)
Notable Features
- Fuel Efficiency: Equipped with advanced hydraulic controls and optimized engine performance for improved fuel economy.
- Cab Comfort: Spacious, ergonomic cab with reduced noise levels and enhanced visibility for operator comfort.
The Case CX250C Tier 3 Excavator combines powerful digging capabilities with efficient fuel consumption, making it suitable for demanding construction and excavation projects.
