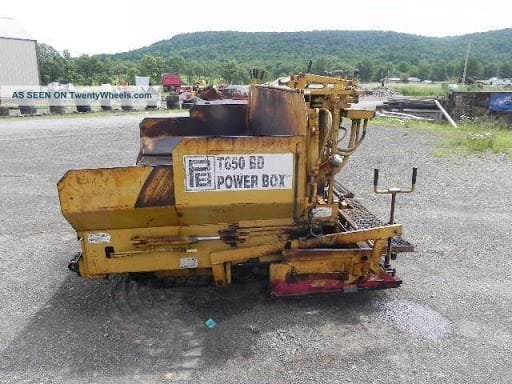

Gehl T650b T650bd Asphalt Paver Parts Manual
Beginning Serial Number: 907363
Parts Manual Covers:
T650B/T650BD Self-Propelled Paver SERVICE PARTS
General Section
- Introduction: Inside Front Cover
- Table of Contents: 1
- Decal Locations: 3
Chassis Section
- Screed Assembly: 8
- T650B Gas – Right Side Backwall : 12
- T650BD Diesel – Right Side Backwall : 16
- Left Side Backwall : 20
- Lower Frame & Hopper : 24
- Drive Track Assembly: 26
Electrical Section
- T650B Gas – Main Wire Harness Hookup: 28
- T650BD Diesel – Main Wire Harness Hookup: 29
Hydraulic Systems Section
- T650B Gas – Pump/Reservoir Plumbing: 30
- T650BD Diesel – Pump/Reservoir Plumbing: 34
- Drive Valve/Motors Plumbing: 38
- Auger & Gates Plumbing: 42
- Hopper Lift Plumbing: 44
- Screed Plumbing: 46
Hydraulic Components Section
- Front Piston Pump: 48
- Rear Gear Pump: 50
- Auger Drive Pump: 51
- Track Drive Motor: 52
- Track Drive Torque Hub: 54
- Auger Drive Motor: 56
- Screed Vibrator Motor: 57
- Drive Control Valve: 58
- 7-Stack Control Valve: 60
- Auger Control Valve: 62
- Steer Control Valve: 64
- Relief Valve: 65
- Gate Shut-Off Cylinder: 65
- Side Gate Cylinder: 66
- Hopper Lift Cylinder: 66
- Screed Extend Cylinder: 67
- Screed Lift Cylinder: 67
- Track Adjust Cylinder: 68
- High Pressure Cylinder: 68
Miscellaneous Section
- Numerical Index: 69
- Standard Attaching Hardware (Nuts, Washers): 74
- Hardware Torque Specs: Inside Back Cover
General Section
- Chassis Section
- Electrical Section
- Hydraulic Systems Section
- Hydraulic Components Section
- Miscellaneous Section
GEHL Company reserves the right to make changes or
improvements in the design or construction of any part of
the unit without incurring the obligation to install such changes on any unit previously delivered.
Grease fittings and common attaching hardware, such as Cotter Pins, Set Screws, Woodruff Keys, Screws, Nuts, etc., are included in the parts list, indented below the part it is (they are) associated with, but NOT illustrated, except where a particular routing or special fastening arrangement MUST be maintained.
The hardware listed is for mounting purposes and is NOT included when the part is ordered for replacement.
Gehl T650b T650bd Parts Manual, Standard attaching hardware torque values are provided on the Inside Back Cover. Unless otherwise specified, all Cap Screws are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Cap Screws or Bolts are Grade A.
Gehl T650b T650bd Asphalt Paver Parts Manual
