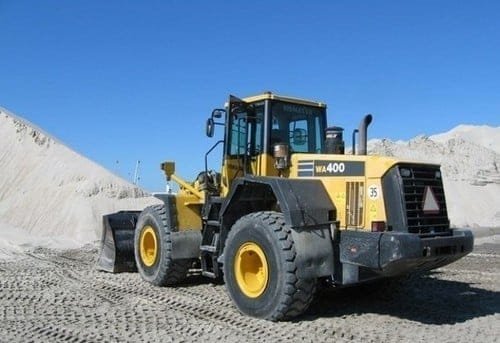

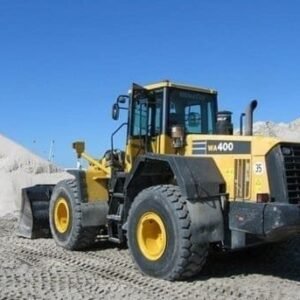

Komatsu WA400-1 Wheel Loader Workshop Service Repair Manual
Full workshop service manual with electric wiring diagrams for Komatsu WA400-1 Wheel Loader. It’s the same service guidebook made use of by dealers that assured to be fully useful as well as undamaged with no missing out on page. komatsu-wa400-1-wheel-loader.
Komatsu WA400-1 This solution & repair handbook (including maintenance, overhaul, dismantling & assembling, adjustment, tune-up, procedure, checking, diagnostic & troubleshooting …) is separated into different areas.
Each area covers a particular component or system with detailed pictures. A table of contents is positioned at the start of each area. Pages are easily discovered by classification, and also each page is expandable for wonderful information. The printer-ready PDF files function like a charm on all type of gadgets.
Komatsu WA400-1 Wheel Loader Workshop Service Repair Manual
” Shop Guidebook (SEBM04240106). pdf”.
Komatsu WA400-1 Wheel Loader Shop Guidebook; 780 web pages.
IDENTIFICATION NUMBERS: 10001 and UP.
PASSAGE:.
DISASSEMBLY AND ALSO ASSEMBLY – TRANSFER.
1. Gear assembly (transfer side).
1) Set up external race (4) (O.D.: 130 mm) on case.
2) Set up worm gear (9) and also pin (8) to equipment (10).
3) Mount cover (7), after that install breeze ring (6).
4) Mount bearing (11) (I.D.: 85 mm) on gear (10).
5) Mount gear setting up (5).
2. Cage (transfer input side).
1) Mount external race (4) (0.0.: 130 mm) to cage (3).
2) Set up shims which were gotten rid of, fit O-ring as well as set up cage (3).
3) Revolve shaft with torque wrench Q) and determine preload of bearing. * Preload of bearing (rotating torque).
i) Alone: 0.01 – 0.1 kgm.
ii) Combined with idler gear: 0.04-0.18 kgm.
* Adjust with shims to acquire the above turning torque.
