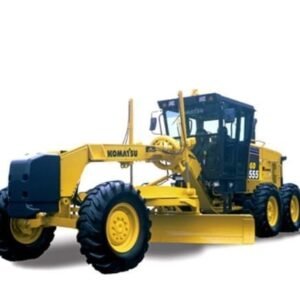

Komatsu GD655-5 Grader Workshop Repair Manual
This collection contains the following products:
Komatsu GD655-5 operation and maintenance manual
Komatsu GD655-5 parts book
Komatsu GD655-5 workshop service manual
Engine and Related Items
• Double element air cleaner and dust
indicator.
• Engine: Komatsu SAA6D107E-1, EPA
Tier 3 certified, turbocharged and
air-to-air after cooled, standard VHPC,
145-218 net horsepower
• Fuel line pre-filter
• Hood-sides for engine compartment
• Air intake extension
Komatsu GD655-5 Repair Manual – Comprehensive Guide
Electrical Systems
• Alarm, back-up
• Alternator, 60 amp, 24V
• Battery, extreme duty, 1146 cca each
• Dome light, cab
• Horn, electric
• Lights: back-up, stop, tail, directional,
headlights (2 halogen type, front bar
mounted)
• Work lamps: front (4), rear (2)
• Speedometer
• Indicators: parking brake, differential
lock, blade float, lift arm lock,
high beam, eco, engine P mode, cooling
fan reverse, rpm set, engine oil pressure,
battery charge, brake oil pressure,
differential oil temperature
Optional Equipment
• Auto grease system, Lincoln
• Automatic transmission
• Bucket
11.5cu m3/15cu yd3 for high lift boom
12.3cu m3/16cu yd3 for high lift boom
(light material 2850 lb/yd3, 1700 kg/m3)
13cu m3/17cu yd3 for std.boom
• High lift arrangement
Boom
Boom cylinders
Bucket cylinders
Counterweight
• Rims for 45/65-45 tires
Tires:
45/65-45-58PR L5
45/65-R45 46PR XLDD2 (Michelin)
• Wiggins fast fuels fill
Work Equipment
• 17.0 yd3 (13 m3) spade nose heavyduty
rock bucket
• 15.0 yd3 (11.5 m3) spade nose heavyduty
rock bucket (for high lift)
• Komatsu Buckets with Hensley
Lips and GET (Bladesaver® II system)
