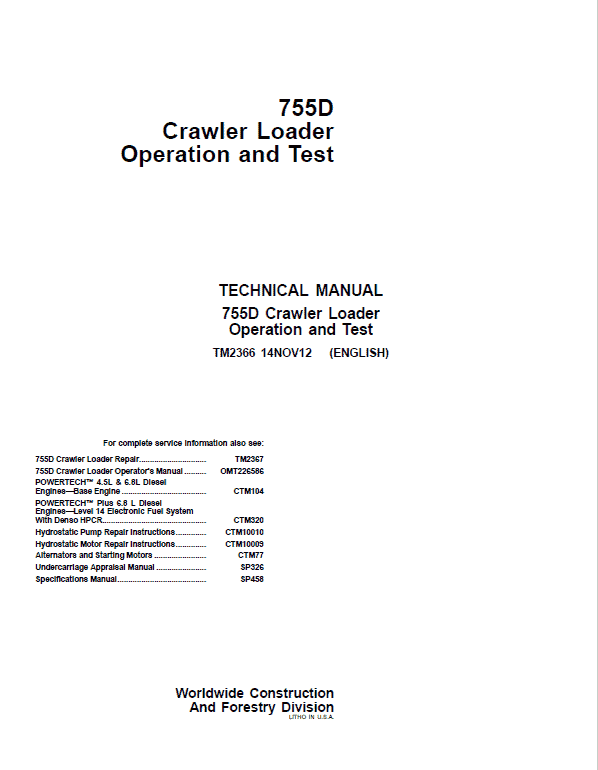

John Deere 755D Crawler Loader Technical Manual TM2366 and TM2367
John Deere 755D Crawler Loader Diagnostic, Operation & Test Manual – Complete Technical Service Guide.
Manual Included:
Repair Technical Manual: 324 Pages (TM2367)
Operation and Test Manual: 780 Pages (TM2366)
Specifications:
Brand: John Deere
Model: 755D
Type: Crawler Dozer
Manuals: Repair Technical Manual and Operation and Test Manual
Publication Numbers: TM2367 and TM2366
Language: English
Format: PDF
Overview of the John Deere 755D Crawler Loader
We present a comprehensive and technically advanced diagnostic, operation, and test manual for the John Deere 755D Crawler Loader—an industry-proven machine engineered for high-performance earthmoving, grading, and material handling operations. This manual is designed for professional technicians, field mechanics, and equipment owners requiring precise diagnostic protocols and system-level understanding.
The John Deere 755d Diagnostic Operation Manual crawler loader integrates robust hydraulic systems, a high-torque diesel engine, and advanced drivetrain components, making accurate diagnostics essential for maintaining optimal performance and minimizing downtime.
Complete Manual Coverage – Systems and Procedures
Engine Diagnostic and Testing Procedures
- Engine performance analysis under load conditions
- Compression testing and cylinder leakage inspection
- Fuel injection timing and calibration procedures
- Turbocharger inspection and boost pressure testing
- Cooling system flow diagnostics and thermal regulation checks
Powertrain and Transmission System
- Torque converter diagnostics and stall speed testing
- Transmission clutch pressure testing
- Gear engagement troubleshooting procedures
- Final drive inspection and wear analysis
- Powertrain oil flow and contamination testing
Hydraulic System Diagnostics
- Hydraulic pump efficiency testing
- System pressure checks and relief valve calibration
- Control valve function testing
- Hydraulic cylinder leakage detection
- Flow rate measurement procedures
Electrical and Electronic Systems
- Complete wiring schematics with circuit tracing
- Sensor diagnostics and signal verification
- Alternator output testing
- Starter system load testing
- Ground fault detection and correction
Undercarriage and Structural Components
- Track tension adjustment procedures
- Roller and idler inspection standards
- Sprocket wear measurement
- Frame stress inspection points
- Loader arm structural integrity checks
Advanced Diagnostic Methodology
We implement structured diagnostic workflows that align with manufacturer-level service standards. Each system is analyzed using step-by-step procedures to isolate faults efficiently.
Diagnostic Workflow
- Symptom identification
- System isolation
- Pressure and performance testing
- Component verification
- Corrective repair implementation
Technical Specifications – John Deere 755D
| Specification | Detail |
|---|---|
| Engine Type | Turbocharged Diesel Engine |
| Operating Weight | Approx. 18,000 – 20,000 lbs |
| Transmission | Powershift |
| Hydraulic System | High-pressure closed system |
| Undercarriage Type | Track-driven crawler system |
John Deere 755D Crawler Loader Technical Manual TM2366 and TM2367
System Interaction Diagram
Operation and Testing Procedures
Pre-Operation Inspection Checklist
- Verify engine oil and coolant levels
- Inspect hydraulic fluid condition
- Check track tension and alignment
- Test electrical system functionality
- Ensure all safety systems are operational
Operational Testing
- Engine idle and load response testing
- Travel speed verification
- Hydraulic response and cycle time testing
- Loader bucket control precision
Performance Testing
- Hydraulic pressure benchmarking
- Engine load capacity testing
- Transmission shift performance evaluation
- Brake system operational testing
Maintenance Schedule for Maximum Performance
Daily Service
- Inspect fluid levels
- Check for visible leaks
- Clean debris from cooling system
Weekly Service
- Inspect air intake system
- Lubricate pivot points
- Check battery condition
Monthly Service
- Replace filters (oil, fuel, hydraulic)
- Inspect hydraulic hoses
- Check track wear and alignment
Annual Overhaul
- Complete engine inspection
- Hydraulic system flush and recalibration
- Transmission service and oil replacement
