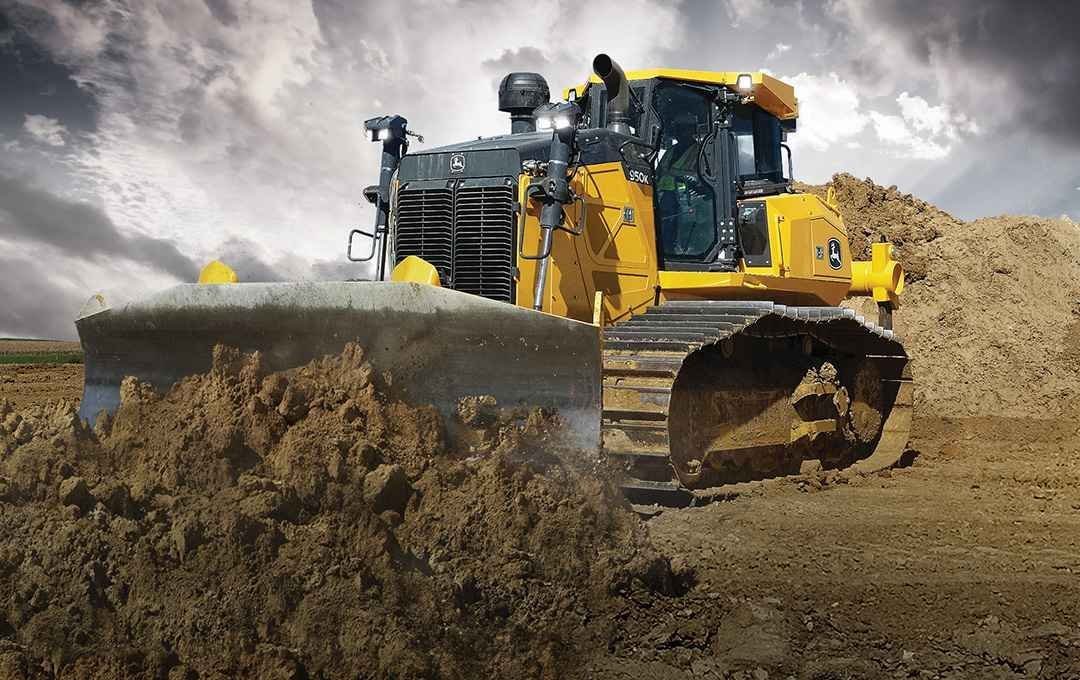

JD 750 k Crawler Dozer Technical Manual TM13282X19
(SN. from F271510)
- Manual Included:
- Repair Technical Manual: 572 Pages (TM13282X19)
- Specifications:
- Brand: JD
- Model: 750K, 850K
- Serial Number:
750K- PIN: 1T0750KX_ _F271593—
850K-PIN: 1T0850KX_ _F271510— - Type: Crawler Dozer
- Manuals: Repair Technical Manual and Operation and Test Manual
- Publication Numbers: TM13282X19
- Language: English
- Format: PDF
Other Manual : Get the Diagnostic, Operation & Test Manual for 750K/850K Dozers (TM13280X19)
JD 750 k Dozer Technical Manual TM13282X19
Introduction
- Foreword
General Information
- Safety
- Torque Values

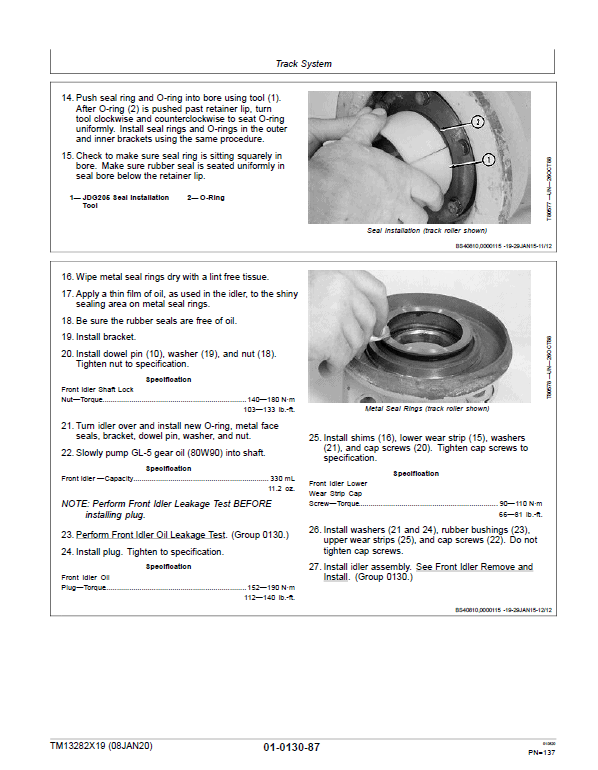

Tracks
- Track System
Axles and Suspension Systems
- Drive Axle Housing and Support
- Axle Shaft, Bearings, and Reduction Gears
Transmission
- Removal and Installation
- Controls Linkage
- Input Drive Shafts and U‑Joints
- Hydraulic System
Engine
- Removal and Installation
Engine Auxiliary System
- Cold Weather Starting Aids
- Cooling Systems
- Intake System
- External Exhaust Systems
- External Fuel Supply Systems
Park Brake
- Controls Linkage
- Hydraulic System
Equipment Attaching
- Drawbar
Electrical System
- Removal and Installation
Frame or Supporting Structure
- Frame Installation
- Frame Bottom Guards
- Chassis Weights
Operator`s Station
- Removal and Installation
- Operator Enclosure
- Seat and Seat Belt
- Heating and Air Conditioning
Sheet Metal and Styling
- Hood or Engine Enclosure
- Grille and Grille Housing
Safety and Convenience
- Horn and Warning Devices
Main Hydraulic System
- Hydraulic System
Bulldozer
- Blade
- Frames
- Hydraulic System
Ground Conditioning Tool
- Ripper
- Blades, Teeth, and Shanks
- Hydraulic System
Dealer Fabricated Tools
- Dealer Fabricated Tools
