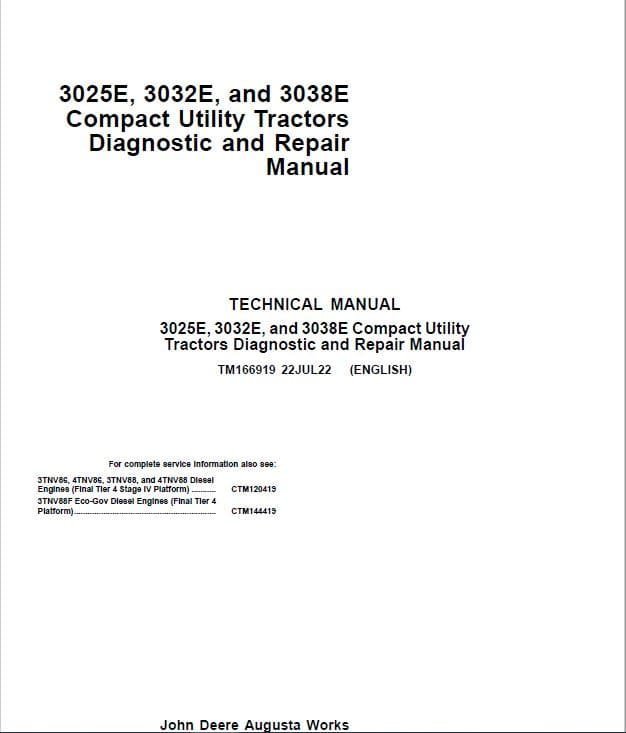

JD 3025E, 3032E, 3036E, 3038E Tractors Technical Manual
- Manual Included:
- Diagnostic and Repair Technical Manual: 1178 Pages (TM166919)
- Specifications:
- Brand: JD
- Model: 3025E, 3032E, 3038E
- Serial Number: (S.N L100001- NP900001)
- Type: Compact Utility Tractors
- Manuals: Diagnostic and Repair Technical Manual
- Publication Numbers: TM166919
- Language: English
- Format: PDF
JD 3025E, 3032E, 3036E, 3038E Tractors Technical Manual (S.N L100001- NP900001)
- Table of Contents:
- Introduction
- Foreword
- General Information
- Safety
- General References
- Technical Specific References
- Fuel and Lubricants
- Serial Number Locations
- Engine Repair
- Engine
- Cooling System
- Fuel, Air Intake, and Exhaust Repair
- Fuel
- Air Intake
- Exhaust
- Electrical Repair
- Electrical Connector Repair
- Battery, Starter, and Alternator
- Electrical System Components
- Drive Systems and Transmission Repair
- Power Train
- Mechanical Front Wheel Drive
- Differential
- PTO
- Steering Repair
- Steering
- Brake Repair
- Brake
- Hydraulics Repair
- Hydraulic Pump and Filter
- Rockshaft
- Range Control and Three Point Hitch
- Selective Control Valve
- Hydraulic Lines
- Miscellaneous Repair
- Hood and Side Panels
- Fenders
- Wheels
- Cab/Open Operator`s Station Repair
- Seat and Support
- Control Console
- Roll-Gard
- Open Operator Station Components
- Diagnostic Trouble Codes
- General References
- Instrument Cluster Control (ICC) Diagnostic Trouble Codes
- Engine Control Unit (ECU) Diagnostic Trouble Codes
- Observable Symptoms and System Diagnostics
- General References
- Engine System Diagnostics
- Fuel, Air Intake, Exhaust, and Cooling System Diagnostics
- Electrical System Diagnostics
- Electronic Control Unit System Diagnostics
- Drive Systems and Transmission System Diagnostics
- Steering System Diagnostics
- Brakes System Diagnostics
- Hydraulic System Diagnostics
- Engine Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Tests and Adjustments
- Fuel, Air Intake, Exhaust, and Cooling Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Component and Connector Information
- Tests and Adjustments
- Electrical General and Theory of Operation
- General References
- Electrical Theory of Operation
- Electrical Schematics
- General References
- Starting and Charging-with ECU (SE1A)
- Starting and Charging-without ECU (SE1B)
- Lighting-without License Light (SE2A)
- Lighting-with License Light (SE2B)
- Brake Switch, Horn, and Rear Trailer Connector (SE2C)
- Instrument Cluster Control (ICC) (SE3)
- Engine Control Unit (ECU) (SE4)
- Cruise Control Kit (SE6)
- Third EH SCV (SE7)
- Electrical Components and Connectors
- General References
- Electrical Assemblies, Modules, and Control Units
- Sensors
- Resistors/Condensors/Capacitors
- Lights
- Fuses
- Charging
- Monitoring/Warning Devices
- Relays
- Motors
- Switches
- Wiring Harnesses
- Interconnects
- Solenoids and Electrically Actuated Mechanical Devices
- Ground Points
- Electrical Tests and Adjustments
- General References
- Tests and Adjustments
- Electronic Control Units
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Component and Connector Information
- Test and Adjustments
- Instrument Cluster Control (ICC)
- Engine Control Unit (ECU)
- Drive System and Transmission Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Schematics
- Component and Connector Information
- Tests and Adjustments
- Steering Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Schematics
- Component and Connector Information
- Tests and Adjustments
- Brakes Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Component and Connector Information
- Tests and Adjustments
- Hydraulics Operation, Test, and Adjustments
- General References
- Calibrations, Preliminary Checks and Operational Checks
- Theory of Operation
- Schematics
- Component and Connector Information
- Tests and Adjustments
- Cab/Open Operators Station Operation, Test, and Adjustments
- General References
- Theory of Operation
- Schematics
- Component and Connector Information
- Service Tools
- General References
- Dealer Fabricated and Service Tools
- Section 240A
- Section 240B
- Section 240C
- Section 240D
