Hyundai robex 55-3 specs Service:
- The Hyundai Robex 55-3 is a robust and versatile excavator designed to handle a wide range of construction and excavation tasks with precision and efficiency. Here are the key specifications and service details for the Hyundai Robex 55-3:
- Engine: The Robex 55-3 is powered by a reliable and fuel-efficient Hyundai D4BB diesel engine, delivering high performance and low emissions.
- Operating Weight: With an operating weight of approximately 5.25 tons, the Robex 55-3 offers stability and maneuverability for various job sites and conditions.
- Bucket Capacity: The excavator is equipped with a durable and high-capacity bucket with a capacity of [0.18 U/min] cubic meters, allowing for efficient material handling and excavation.

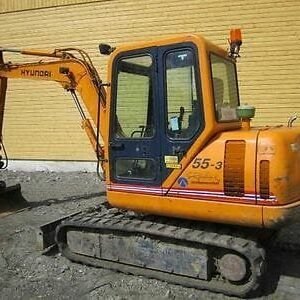

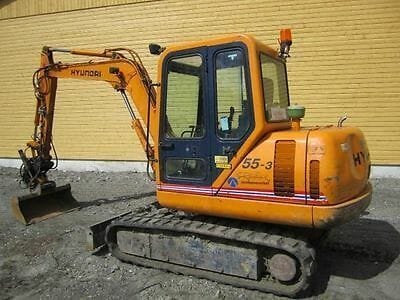

Hyundai Robex 55-3 Crawler Excavator Service Manual
This Hyundai manual contains some instructions and safety recommendations concerning driving, handing, lubrication, preservation, inspection, and adjustment of the equipment.
The guide is to sell safety preservation and enhance machine performance.
This Service and Repair Manual Covers the subsequent Models:
Hyundai Robex 55-three R55-3 Crawler Excavator
This service manual contains:
FOREWORD
SECTION 1 GENERAL
1 Safety Hints
2 Specifications
SECTION 2 STRUCTURE AND FUNCTION
1 Hydraulic Circuit Diagram

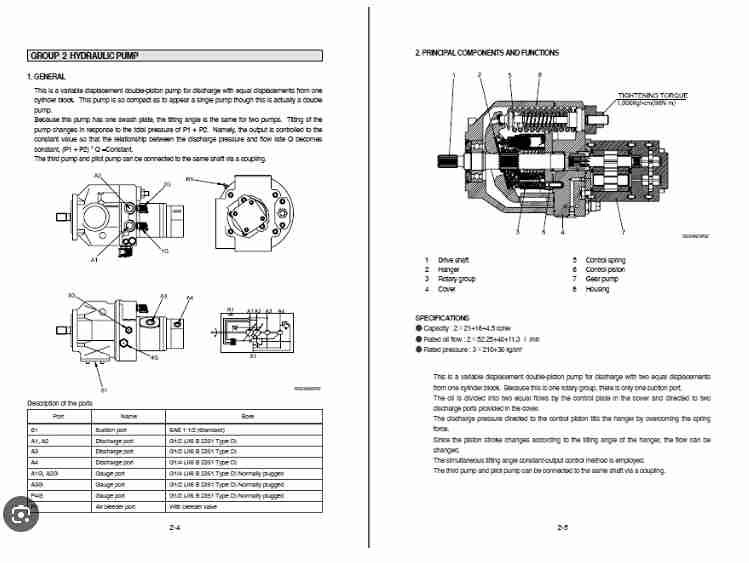

2 Hydraulic Pump
3 Main Control Valve
4 Travel Device
5 Swing Machinery
6 RCV Lever
7 Power Train
8 Swing Circle
9 Track Frame and Tension Spring
SECTION three TESTING AND ADJUSTING
1 Operational Performance Test
2 Testing and Adjusting Hydraulic Pressure
SECTION 4 ELECTRICAL SYSTEM
1 Component Location
2 Electrical Circuit Diagram
three Electrical Circuit Operation
four Monitoring System
SECTION five TROUBLESHOOTING
1 Electrical System
2 Hydraulic Components
SECTION 6 MAINTENANCE STANDARD
1 Major Components
2 Track and Work Equipment
SECTION 7 DISASSEMBLY AND ASSEMBLY
1 Hydraulic Pump
2 Main Control Valve
three Swing Motor
4 Travel Motor
five Remote Control Valve
6 Turning Joint
