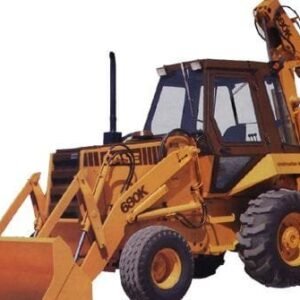

Guide Case 680k Loader Backhoe Operators
Manual Covers:
CASE 680G Loader Backhoe Operators Manual DOWNLOAD
Manual Covers:
Introduction
Safety
Specifications
Instructions For Operation Of The Machine
Engine Operation
Machine Operation
Loader Operation
Backhoe Operatin
Fuels And Lubricants
Maintenance And Lubrication
Wheels And Tires
Front Wheel Bearings
Drice Belts
Loader Service
ROPS Cab Service
Seat Belts
Spark Arrester Muffler
Procedure To Store The Machine
Procedure To Put Machines
After Delivery Check
And More……
Specification
J.I. Case 680G Power:
Engine (gross): 88 hp [65.6 kW]
Engine (net): 80 hp [59.7 kW]
Mechanical:
Chassis: 4×2 2WD
Final drives: outboard planetary
Steering: hydrostatic power
Cab: Cab optional.
Hydraulics:
Type: open center
Capacity: 13.8 gal [52.2 L] (reservoir)
Pump flow: 27.2 gpm [103.0 lpm]
17.8 gpm [67.4 lpm]
Total flow: 45 gpm [170.3 lpm]
Electrical:
Charging system: alternator
Charging amps: 40
Battery:
Number: 2
Volts: 12
Production:
Manufacturer: J.I. Case
J.I. Case 680G Engine:
J.I. Case 5.5L 4-cyl diesel
full engine details …
Capacity:
Fuel: 30 gal [113.6 L]
Hydraulic system: 13.8 gal [52.2 L] (reservoir)
Dimensions & Tires:
Wheelbase: 86 inches [218 cm]
Weight: 15145 to 17040 pounds
Front tire: 11.00×16
Rear tire: 16.9×24
File Format: PDF
Compatible: All Versions of Windows & Mac
Language: English
Requirements: Adobe PDF Reader & WinZip
Guide Case 680k Loader Backhoe Operators
