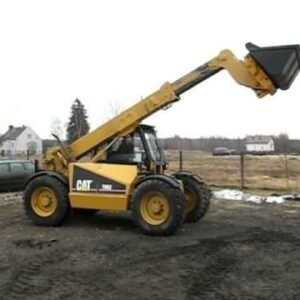

TH62 Telehandler 3ln
Engine:
Caterpillar 3054T turbocharged,
water-cooled, 4-stroke, 4-cylinder
diesel engine.
Ratings at 2200 rpm kW hp
Gross Power 78 105
Net Power (SAE J1349) 75 101
Ratings at 1600 rpm Nm
Net Torque 365 Nm (269 ft-lb)
Dimensions
Bore 100mm (3.94 in.)
Stroke 127mm (5 in.)
Displacement of 4.0 liter (243 in3 ).
Hydraulic System:
Load-sensing, variable displacement, axial piston pump. Flow share valve for simultaneous operation of the boom functions.
Single lever pilot-operated joystick. Lock valves on all load holding
cylinders.
Standard Equipment:
Standard equipment may vary. Consult your Caterpillar dealer for specifics.
Air Cleaner, radial seal with indicator Alternator, 55amp (12 volts)
Antifreeze (-37° F), Auxiliary hydraulics at the boom head
Back-up alarm, Battery, 12 volts, 950CCA, Differential lock (front axle)
Instrumentation:
Engine Coolant gauge
Transmission Oil temperature gauge
Fuel level gauge
Warning lights, 6 total
Hydraulic quick coupler
Joystick control, pilot operated
Mudguards
Mirror, rearview, right side
Radiator dust screen
ROPS/FOPS canopy
Seat, suspension, with 3 in. retractable
seat belt
Engine starting system, cold weather
Steering column tilt
The steering system, three modes
Retrieval hitch with pin
Transmission oil cooler
Transport tie-down points.
Brakes
Features
■ Fully enclosed oil disc brakes on both axles
■ Power-assisted, foot-operated service brakes
■ Selectable transmission disconnect on the foot-brake operation
■ Hand-operated modulating park-brake operates on front axle brake discs.
■ Transmission interlock on the parking brake.
